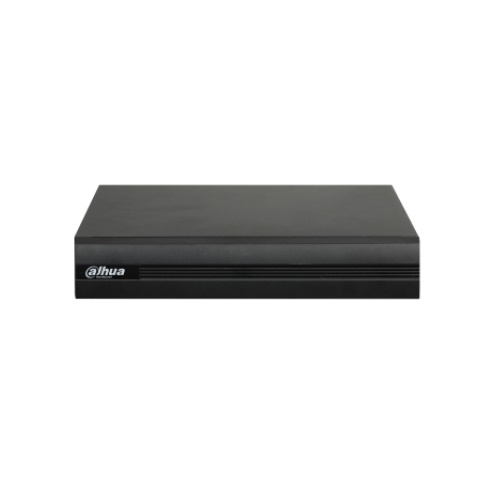

Dahua XVR1B16H-I PENTA – BRID DVR 5MP Supported (1080P) is a high-quality surveillance system that offers exceptional performance. With its Cooper 1U 1 HDD Wiz Sense DVR, it provides reliable and efficient monitoring capabilities. This DVR is compatible with HDCVI, HDTVI, AHD Analog, and IP cameras, allowing for versatile camera options. Additionally, it supports up to 1 HDD with a maximum capacity of 16TB, ensuring ample storage space for recordings. The full metal casing of this DVR adds durability and protection, making it a reliable choice for any surveillance needs.
Dahua XVR1B16H-I Specification
| System | ||
| Main Processor | Embedded Processor | |
| Operating System | Embedded LINUX | |
| Audio and Video | ||
| IP Camera Input | 9+2 each channel up to 12MP | |
| Two-Way Talk | Reuse audio in/out, RCA | |
| Display | ||
| Interface | 1 HDMI ,1 VGA | |
| Resolution | 1920×1080, 1280×1024, 1280×720 | |
| Multi-Screen Display | When IP extension mode not enabled: 4CH: 1/4 When IP extension mode enabled: 4CH: 1/4/6 | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
| Recording | ||
| Compression | H.265+/H.265/H.264+/H.264 | |
| Resolution | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF | |
| Record Rate | Main Stream: 4CH: the 1st channel 5M-N(1~10fps) Sub stream: CIF/QCIF (1~15fps) | |
| Bit Rate | 32Kbps ~ 6144Kbps Per Channel | |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop | |
| Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec | |
| Video Detection And Alarm | ||
| Trigger Event | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips | |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis | |
| Playback And Backup | ||
| Sync Playback | 4CH: 1/4 | |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) | |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom | |
| Backup Mode | USB Device/Network | |
| Third Party Support | ||
| Third Party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more | |
| Network | ||
| Interface | 1 RJ-45 Port (100M) | |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) | |
| Maximum User Access | 128 users | |
| Smart Phone | iPhone, iPad, Android | |
| Interoperability | ONVIF 16.12, CGI Conformant | |
| Storage | ||
| Internal HDD | 1 SATA Port, up to 6TB capacity | |
| Auxiliary Interface | ||
| USB | 2x USB 2.0 | |
| Power | ||
| Power Supply | DC12V/1.5A | |
| Power Consumption | <10W | |
| Component Environment | ||
| Operational Conditions | -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH | |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH | |
| Construction | ||
| Dimensions | 197mm×192mm×41mm (7.8“×7.6”×1.6“) | |
| Net Weight | 0.54kg | |
