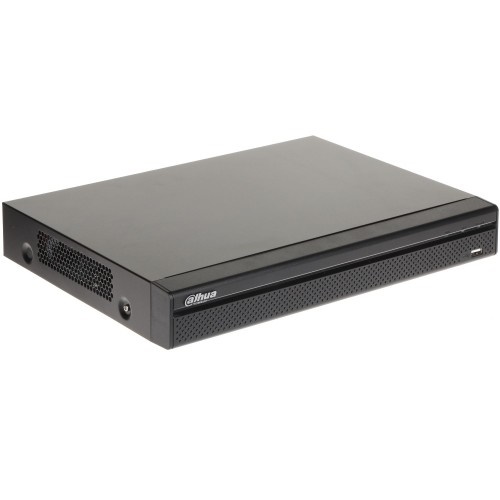

Dahua XVR1B04H-I DAHUA PENTA – BRID DVR 5MP Supported (1080P) Cooper 1U 1 HDD Wiz Sense DVR is a versatile and high-performance surveillance system. XVR1B04H-I is capable of supporting HDCVI, HDTVI, AHD Analog, and IP cameras, providing flexibility in camera options. With support for up to 16TB of storage, it allows for extensive recording capabilities. The full metal casing ensures durability and protection for the DVR, making it suitable for various environments.
Dahua XVR1B04H-I Specification
| System | ||
| Main Processor | Embedded Processor | |
| Operating System | Embedded LINUX | |
| Audio and Video | ||
| IP Camera Input | 4+2 each channel up to 6MP | |
| Two-Way Talk | Reuse audio in/out, RCA | |
| Display | ||
| Interface | 1 HDMI ,1 VGA | |
| Resolution | 1920×1080, 1280×1024, 1280×720 | |
| Multi-Screen Display | When IP extension mode not enabled: 4CH: 1/4 When IP extension mode enabled: 4CH: 1/4/6 | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
| Recording | ||
| Compression | H.265+/H.265/H.264+/H.264 | |
| Resolution | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF | |
| Record Rate | Main Stream: 4CH: the 1st channel 5M-N(1~10fps) Sub stream: CIF/QCIF (1~15fps) | |
| Bit Rate | 32Kbps ~ 6144Kbps Per Chane | |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop | |
| Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec | |
| Video Detection And Alarm | ||
| Trigger Event | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips | |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis | |
| Playback And Backup | ||
| Sync Playback | 4CH: 1/4 | |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) | |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom | |
| Backup Mode | USB Device/Network | |
| Third Party Support | ||
| Third Party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more | |
| Network | ||
| Interface | 1 RJ-45 Port (100M) | |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) | |
| Maximum User Access | 128 users | |
| Smart Phone | iPhone, iPad, Android | |
| Interoperability | ONVIF 16.12, CGI Conformant | |
| Storage | ||
| Internal HDD | 1 SATA Port, up to 6TB capacity | |
| Auxiliary Interface | ||
| USB | 2x USB 2.0 | |
| Power | ||
| Power Supply | DC12V/1.5A | |
| Power Consumption | <10W | |
| Component Environment | ||
| Operational Conditions | -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH | |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH | |
| Construction | ||
| Dimensions | Cooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“) | |
| Net Weight | 0.54kg | |
