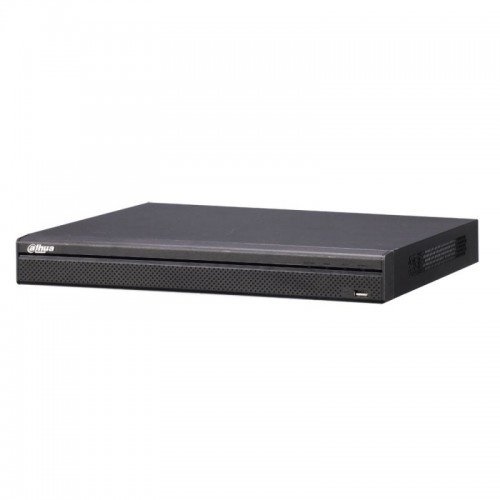

Dahua NVR5216-4KS2 model is labeled as 16 CH 2U 4K & H.265 and is capable of supporting up to 4MP resolution.NVR5216-4KS2 is also compatible with other resolutions such as 12MP, 8MP, 5MP, 3MP, and 1080P. The device has 2 HDMI and VGA outputs that can reach up to 3840 x 2160 resolution. Additionally, it can support up to 10 TB of storage.
NVR5216-4KS2 Specification
| System | ||
| Main Processor | Quad-core embedded processor | |
| Operating System | Embedded LINUX | |
| Audio and Video | ||
| IP Camera Input | 16 Channel | |
| Two-Way Talk | 1 Channel Input, 1 Channel Output, RCA | |
| Display | ||
| Interface | 1 HDMI, 1 VGA | |
| Resolution | HDMI: 3840 x 2160 , 1920 x 1080 , 1280 x 1024, 1280 x 720 , 1024 x 768 VGA: 1920 x 1080 , 1280 x 1024, 1280 x 720 , 1024 x 768 | |
| Decoding Capacity | 4-ch@8MP(30fps), 16-ch@1080P(30fps) | |
| Multi-Screen Display | 1/4/8/9/16 | |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording | |
| Recording | ||
| Compression | Smart H.265+/H.265/Smart H.264+/H.264/MJPEG | |
| Resolution | 12MP with 15fps, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1, CIF with 30fps | |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel | |
| Record Mode | Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop | |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec | |
| Video Detection And Alarm | ||
| Trigger Event | Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips | |
| Video Detection | Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering | |
| Alarm Input | 4 Channel | |
| Relay Output | 2 Channel | |
| Playback And Backup | ||
| Sync Playback | 1/4/9/16 | |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) | |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom | |
| Backup Mode | USB Device/Network | |
| Third Party Support | ||
| Third Party Support | Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more | |
| Network | ||
| Interface | 1 RJ-45 Ports (10/100/1000Mbps) | |
| PoE | N/A | |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4IP | |
| Maximum User Access | 128 users | |
| Smart Phone | iPhone, iPad, Android | |
| Interoperability | ONVIF 2.4, SDK, CGI | |
| Storage | ||
| Internal HDD | 2 SATA III Ports, up to 8TB capacity for each HDD | |
| HDD Mode | Single | |
| eSATA | N/A | |
| Auxiliary Interface | ||
| USB | 2 ports (1 Rear USB3.0,1 Front USB2.0) | |
| RS232 | 1 Port, for PC Communication and Keyboard | |
| RS485 | 1 Port, for PTZ Control | |
| Power | ||
| Power Supply | Single, DC12V/4A | |
| Power Consumption | <9.5W (Without HDD) | |
| Component Environment | ||
| Operational Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa | |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH | |
| Construction | ||
| Dimensions | 1U, 375mm x 281.5mm x 56mm ;(14.8″ x 11.1″ x 2.2″) | |
| Warranty | ||
| Manufacturing Warranty | 01-year warranty | |
