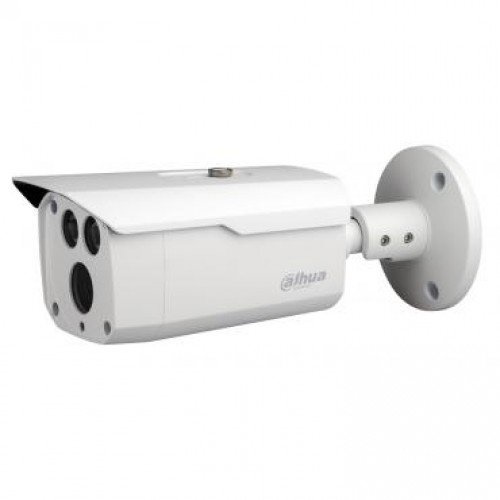

Dahua HAC-HFW1200DP HDCVI IR Bullet Camera is constructed with a durable full metal casing, ensuring its longevity and resistance to harsh weather conditions. Equipped with a 3.6 mm lens, this camera provides a clear and detailed view of the surroundings. With a wide viewing angle of 89.9 degrees horizontally and 59.4 degrees vertically, it captures a broad perspective of the area under surveillance. Additionally, the camera’s infrared technology allows it to capture images up to 80 meters away in complete darkness, providing reliable surveillance even in low-light conditions.
Dahua HAC-HFW1200DP Specification
| Camera HAC-HFW-1200DP | |
| Image Sensor | 1/2.7″ CMOS |
| Effective Pixels | 1920(H)×1080(V), 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum Illumination | 0.02Lux/F2.0, 0Lux IR on |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 80m (262feet) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 2 |
| Lens | |
| Lens Type | Fixed lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 3.6mm (6mm, 8mm Optional) |
| Max Aperture | F2.0 |
| Angle of View | H: 89.9°(59.4°/41.4°) |
| Focus Control | N/A |
| Close Focus Distance | 600mm (1800mm/3000mm) 23.62” (70.87”/118.11”) |
| Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation | Pan: 0° ~ 360° Tilt: 0° ~ 87° Rotation: 0° ~ 360° |
| Video | |
| Resolution | 1080P (1920×1080) |
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P |
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / DWDR |
| WDR | DWDR |
| Gain Control | AGC |
| Noise Reduction | 2D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
| Certifications | |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Interface | |
| Audio Interface | N/A |
| Eelectrical | |
| Power Supply | 12V DC ±25% |
| Power Consumption | Max 6.8W (12V DC, IR on) |
| Environmental | |
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F) |
| Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Ingress Protection &Vandal Resistance | IP67 |
| Construction | |
| Casing | Aluminium |
| Dimensions | 241.8mm×90.4mm×90.4mm (9.52″×3.56″×3.56″) |
| Net Weight | 0.64kg (1.41lb) |
| Gross Weight | 0.77kg (1.70lb) |
